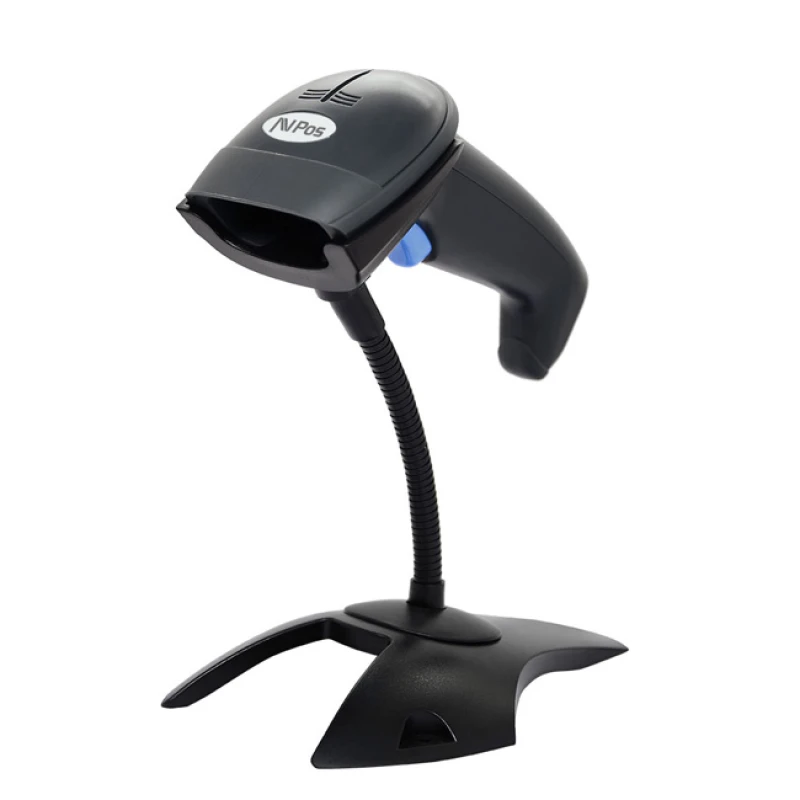

| Performance Parameters |
| Scan Form |
Bi-Directional single line scan |
| Bar code reading speed |
2.0 times/second |
| Symbol Contrast |
20% |
| Bit Error Rate |
1/50.000 |
| Scanning Angle |
Horizontal: 72º | Vertical: 82º | Rotated: 360º |
| 1D Capacity |
EAN-8, EAN-13, EAN-13 2 add on, EAN-13 5 add-on, ISSN, ISBN, UPC-A, UPC-E, Code 11, Code 39, code93, Code 128, Codebar, Industrial 2 of 5, MSI, GS1 DataBar |
| 2D Capacity |
PDF417, Micro QR, DataMatrix, QR Code, HanXin, Aztec |
Decode accuracy
|
Code 39 4mil |
| Code Available |
1D, 2D Codes printing on paper or film or cellphone screen |
| System Compatibility |
Linux, Android, Mac and Windows. |
| Depth of field |
Code39 6.6mil: 7-11Cm | EAN 13 15.6mil: 9-17Cm | DM 15mil: 3-12Cm | QR 15mil: 3-4Cm | PDF417 15mil: 5-15Cm |
| Lamp-House type |
Wavelength: 675nm +- 3 nm high brightness near infrated LED |
| Scan Pattern |
Automatic induction scan, continuous scan, Manual key Scan |
| Keyboard Support |
Support multilanguage keyboard |
| Secondary development |
Not support |
| Barcode output editing |
Support adding prefix and suffixes |
| Human Computer interaction |
| Indicator light |
The LED and red position light will light up after starting the scanner |
| Button |
Trigger Scan |
| Enviroment Parameters |
| Drop |
Design to withstand 1.5M drops to concrete 5 times |
| Enviromental Sealing |
IP54 |
| Working/Conserve temperature |
(-20) ~ 55ºC / (-20) ~ 60ºC |
| Working/Conserve Humidity |
5-95% Non-Condensed |
| Enviroment Light |
120000LUX |
| Physical Parameters |
| Net Weight |
122Gr. |
| Packing Weight |
325Gr. |
| Data Line length |
180Cm (+-3 Cm) |
| Host Size (L*W*H) |
160*80*100mm |
| Packing Size (L*W*H) |
185*85*110mm |
| Communication |
USB (Free Drive), Serial Port RS232 |
| Maximum Current |
293MA |
| Working Current |
158MA |
| Standby Current |
80MA |
| Certification |
CE, FCC, ROHS, IEC62471, EN55022, EN55024, EN61000-3, IEC62321, EN60950, EN60529 |
